01

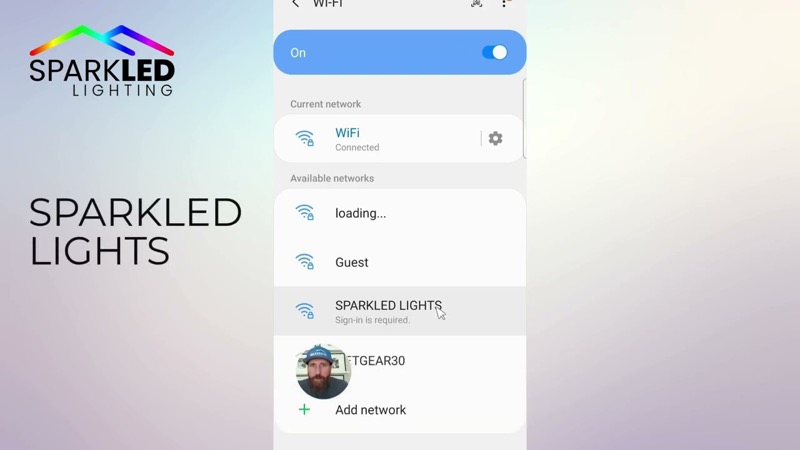

Connect Your Phone To Your Sparkled Smart Lights
SPARKLED LIGHTS Wi-Fi Password: spark123
*Might appear as the following instead:
Wifi network name: WLED-AP
Wifi network password: wled1234
Owner’s guide
Your lights, step by step.
Congratulations on your newly installed Sparkled Smart Lights. These videos walk you through setup and customization — and the whole guide prints on one page if you’d rather have it in your hand.
A note on the app: current systems are controlled with the WLED app shown in these videos. Our own myLights app is on the way for existing systems — we'll let you know when it's ready for yours.
Six video walkthroughs
Printable PDF
Free lifetime support
5 out of 5 stars.
Sparkled Lighting owner was so helpful! I love all the presets and his informative website.— Jaime Barnes Norton, Google review
Start here

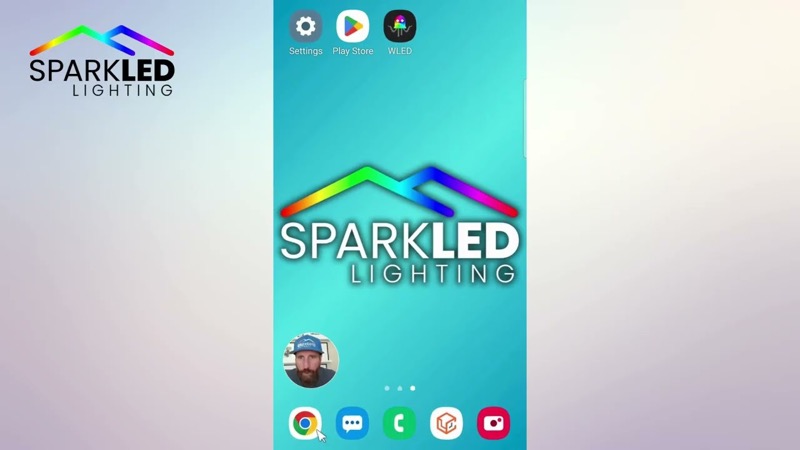

The whole thing, in one video.
If you only watch one, watch this — the rest break it into steps.
Initial setup
Three steps, and you are running.
Each step has its own short video. The notes underneath are the things people call us about.
02

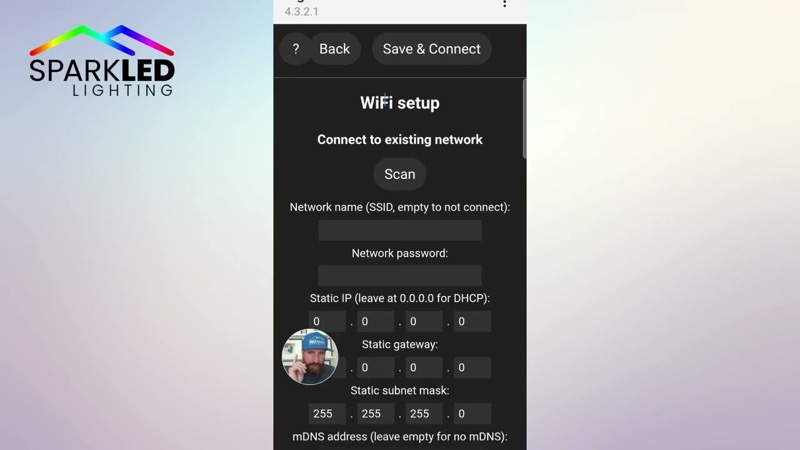

Connect Your Sparkled Smart Lights To Your Wi-Fi
Sparkled Smart Lights are only compatible with 2.4 GHz Wi-Fi internet, it will not connect to 5 GHz wifi signals.
Sparkled Smart Lights can be used without the app or wifi connection; however, other radio signals can potentially interfere with your Lights.
03

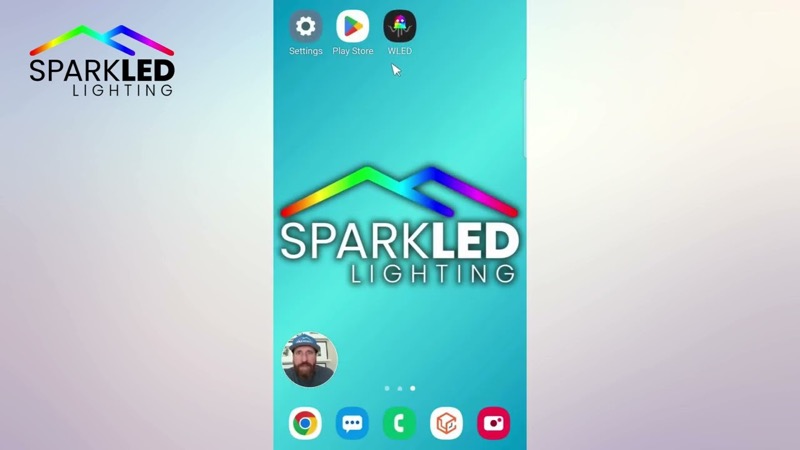

Download And Connect The WLED Native App To Your Phone
If SPARKLED LIGHTS doesn’t appear, or status shows “Offline;” see that your Wi-Fi is on and your mobile device is connected to the same 2.4 GHz Wi-Fi network as your Sparkled Smart Lights.
Check that your Sparkled Smart Lights are plugged in and there is power to the outlet.
Restart your mobile device and reopen the WLED Native app.
How it works
Step one takes about a minute.
Name and number. We come measure, you get a price, you decide. No ladders, no pressure.
Customization
Schedules and presets, the two things worth learning.
Written version

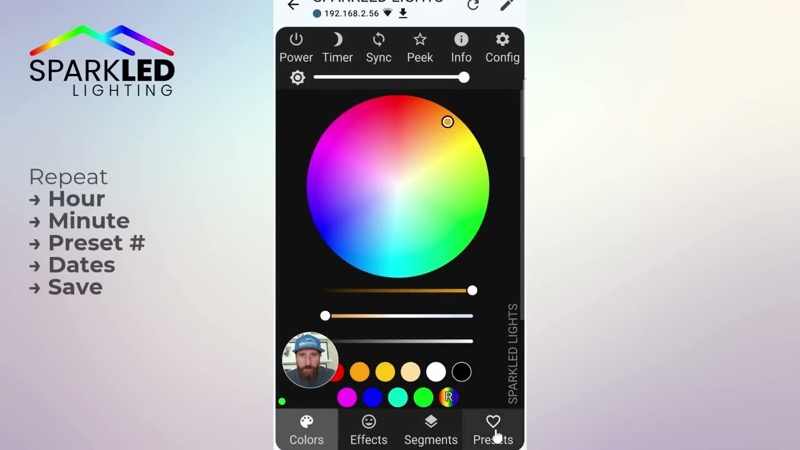

How to set fully automated schedules
- Step 1 — In the “Presets” menu, make note of the preset # you want
- Step 2 — Click the “Config” menu option
- Step 3 — Go to “Time & Macros”
- Step 4 — Scroll down to “Time-controlled presets”
- Step 5 — Enter the Hour, Minute, and Preset # you want
- Step 6 — Click the calendar icon to select the days and months
- Step 7 — Click the “Save” button
NOTE: “Off” is preset #1 and is scheduled the same as all other light displays.
Also worth knowing
Reaching the app from a browser
If your wifi is changed or reset, a new IP could be assigned to your Sparkled Smart Lights. Use the new IP to access the app in a web browser.
Creating your own presets and adding or naming multiple LED devices are both covered in the videos above — and if you get stuck, call or text and Ryan will walk you through it.
Downloads
Take it with you.
The full guide as a printable PDF, and the default presets file if you ever want to start over.
App navigation
What every button does.
Top menu
WLED Native app — top menu
- Power — Turn on and turn off your Sparkled Smart Lights.
- Timer — Turns off your Sparkled Smart Lights after 60 minutes. Press “Timer” again to deactivate.
- Sync — Sync multiple Sparkled Smart Light controller boxes to the same display. Applies to large-scale applications.
- Peek — View in the app the current lighting display selected.
- Info — Technical details of your Sparkled Smart Lights.
- Config — Menu for initial setup, scheduling, and additional settings.
Bottom menu
WLED Native app — bottom menu
- Colors — Select from 16,000,000+ different colors, including the full white spectrum.
- Effects — Create countless spectacular displays of dancing lights.
- Segments — Control entire sections separately or set customized color patterns.
- Presets — Comes preset with 75 specialized displays, save up to 250 of your own custom lighting displays.
